中华胃肠内镜电子杂志 ›› 2025, Vol. 12 ›› Issue (04) : 284 -287. doi: 10.3877/cma.j.issn.2095-7157.2025.04.011

护理园地

一种ERCP专用器械台的设计及应用效果评价
赵书凝, 王盈盈(), 刘晓冰, 杜健, 鲍小倩, 杜康
  1. 100853 北京,解放军总医院第一医学中心消化内科医学部
  • 收稿日期:2025-04-06 出版日期:2025-11-15
  • 通信作者: 王盈盈

The design and application effect evaluation of a specialized ERCP dedicated instrument table

Shuning Zhao, Yingying Wang(), Xiaobing Liu, Jian Du, Xiaoyu Qiu, Kang Du

  1. Department of Gastroenterology, The first Medical Center of Chinese PLA General Hospital, Beijing 100853, China
  • Received:2025-04-06 Published:2025-11-15
  • Corresponding author: Yingying Wang
引用本文:

赵书凝, 王盈盈, 刘晓冰, 杜健, 鲍小倩, 杜康. 一种ERCP专用器械台的设计及应用效果评价[J/OL]. 中华胃肠内镜电子杂志, 2025, 12(04): 284-287.

Shuning Zhao, Yingying Wang, Xiaobing Liu, Jian Du, Xiaoyu Qiu, Kang Du. The design and application effect evaluation of a specialized ERCP dedicated instrument table[J/OL]. Chinese Journal of Gastrointestinal Endoscopy(Electronic Edition), 2025, 12(04): 284-287.

目的

设计一种经内镜逆行胰胆管造影术(ERCP)专用器械台,探讨其在缩短手术准备时间、保证操作台面布局合理及提升手术配合效率中的应用价值。

方法

采用便利抽样法选取2024年3月至2024年7月经解放军总医院第一医学中心消化内科医学部消化内镜中心行ERCP胆管取石的100例患者为研究对象,依据随机数字法将其分为对照组和观察组,每组各50例。观察组在ERCP操作间2完成手术,对照组在ERCP操作间1完成手术。对照组术中使用传统手术器械台,观察组使用ERCP专用器械台。对比两组术前、术中、术后器械台面分区程度、术中器械散开次数、术后台面污染程度及医护满意度。

结果

观察组术前、术中、术后器械台面分区程度评分均高于对照组,差异均有统计学意义(P<0.05)。观察组各种手术器械散开次数明显低于对照组,差异具有统计学意义(P<0.05)。观察组术后台面污染程度评分高于对照组,差异有统计学意义(P<0.05)。观察组工作人员各个维度满意度评分均高于对照组,差异均有统计学意义(P<0.001)。

结论

ERCP专用器械台通过科学设计,可以使手术器械分区清晰,有效减少手术器械散开次数,保证了操作台面布局的合理性,进一步提高了工作效率,有效降低术后器械台的污染程度,提高了工作人员的满意度,具有显著的临床应用优势。

Objective

Design a specialized instrument table for ERCP, and explore its application value in shortening surgical preparation time, ensuring a rational layout of the operating table surface, and enhancing the efficiency of surgical coordination.

Methods

A convenience sampling method was employed to select 100 patients who underwent ERCP for bile duct stone removal at the Gastroenterology Endoscopy Center of our hospital from March 2024 to July 2024 as the study subjects.These patients were then randomly divided into a control group and an observation group using a random number method, with 50 patients in each group.The observation group underwent operative procedures in ERCP Operating Room 2, whereas the control group completed their surgeries in ERCP Operating Room 1.In the control group, a traditional dedicated instrument table was used during the procedure, whereas the observation group utilized a specialized ERCP instrument table. Comparison between the two groups regarding the degree of instrument table area segmentation preoperatively, Intraoperatively and postoperatively, the number of intraoperative instrument scattering incidents, the degree of postoperative tabletop contamination, and the satisfaction level of medical staff.

Results

The observation group demonstrated significantly higher scores for the degree of instrument table area segmentation (preoperatively, intraoperatively, and postoperatively) compared to the control group, with all differences being statistically significant(P<0.05). The observation group exhibited significantly fewer incidents of surgical instrument scattering compared to the control group, and this difference was statistically significant(P< 0.05). The observation group had a significantly higher score for postoperative tabletop contamination compared to the control group, with the difference being statistically significant(P<0.05). The satisfaction scores of the observation group staff in all dimensions were higher than those of the control group, with statistically significant differences.

Conclusion

Through scientific design, the dedicated ERCP instrument table enables clear segmentation of surgical instruments, effectively reduces the frequency of instrument scattering, ensures the rationality of the operating table layout, further improves work efficiency, significantly reduces the level of postoperative tabletop contamination, and enhances staff satisfaction, demonstrating remarkable clinical application advantages.

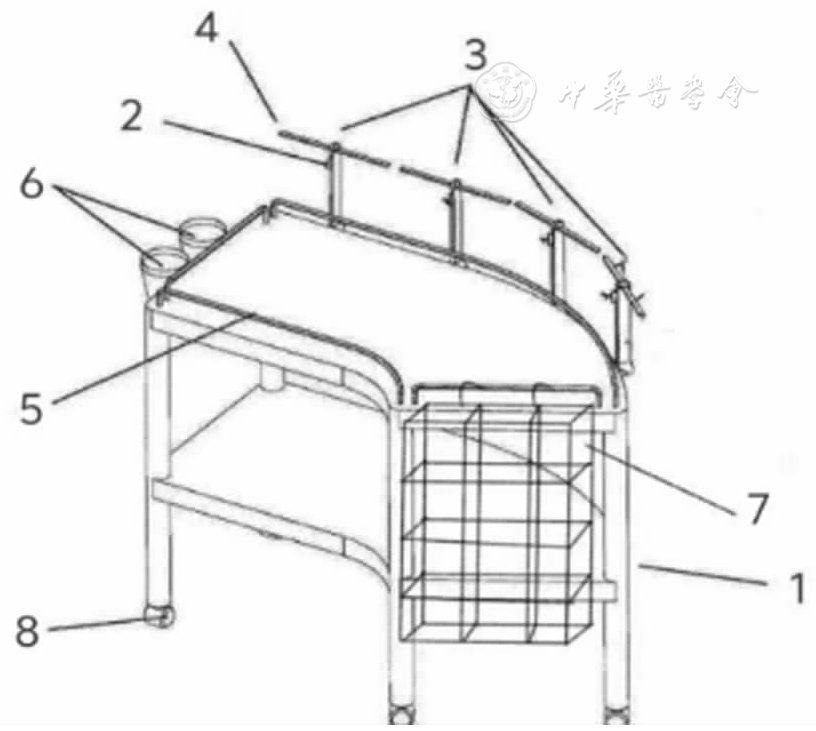

图1 ERCP器械台结构图注:1:桌台;2:夹子;3:"丁"字形支架;4:墙体框架;5:栏杆;6:胆汁回收桶及胆汁纱布回收桶;7:附件袋存放框;8:万向轮
图2 ERCP器械台实物图
表1 台面整洁程度评分表
表2 术前、术中、术后两组器械台面分区程度比较(分,±s)
表3 两组台面手术器械散开例次对比[例(%)]
表4 医护人员对两组手术器械台满意度评分比较(分,±s)
[1]
孔健,孙文兵.胆总管结石的内科治疗[J].中国医刊202055(11):1171-1173.
[2]
章復龙,徐晶,朱元东,等.内镜逆行胰胆管造影术治疗胆总管结石合并人类免疫缺陷病毒感染的临床分析(附12例报告) [J].中国内镜杂志202228(6):78-81.
[3]
孔维红.不同手术台布局方法在腹腔镜胃肠手术中的应用研究[J].当代护士(上旬刊)202229(9):88-91.
[4]
沈晨菲,沈萍,徐贞珍.腹腔镜下肝脏手术改良手术台布局及站位方法应用效果[J].中国乡村医药202128(15):16-18.
[5]
黄彩虹,李珍,刘芳.改良嵌床式扇形可移动托盘的研制及在脑显微外科手术中的应用[J].医疗装备202336(21):111-114.
[6]
王琳,唐和平.无菌操作依从性对骨伤科Ⅰ类切口手术部位感染率的影响[J].实用中医药杂志202036(6):815-816.
[7]
段惠潇.恶性胆道梗阻患者ERCP置入支架术后发生胆管炎的危险因素分析和预测模型建立[D].承德医学院,2023.
[8]
林玉湘,李承宗.ERCP术后胆管重症感染原因分析[J].基层医学论坛202226(32):141-144.
[9]
许刚,沈文拥.ERCP术后胆管感染防治的研究进展[J].现代医药卫生202238(10):1727-1731.
[10]
鲁媚,卢赛芳,陈卓,等.手术室综合护理干预预防骨科无菌手术切口感染的效果分析[J].浙江医学202446(7):756-758,766.
[11]
梁政波,贺俭,赖萍,等.创新手术台布局方法在腹腔镜肝脏手术中的应用[J].护理研究202034(17):3171-3173.
[12]
伍天利.分析眼科手术感染危险因素和预防与控制措施[J].母婴世界202019:285.
[13]
Udeigwe-Okeke CRSeyi-Olajide JOObisesan AO,et al. Enhancing surgical safety through surgical instruments repair technicians′ training: recent experience from Nigeria[J].Front Public Health202513:1522315.
[14]
Heinke TLJoseph ACarroll D.Safety in Health Care:The Impact of Operating Room Design[J].Anesthesiol Clin202341(4): 789-801.
[15]
冯晓君,贾雪芹,邓晨晖,等.标准摆台布局在腹腔镜胃肠手术中的应用[J/OL].世界最新医学信息文摘(连续型电子刊)2024, 24(2):288-291.
