切换至 "中华医学电子期刊资源库"

中华胃肠内镜电子杂志 ›› 2026, Vol. 13 ›› Issue (02) : 101 -107. doi: 10.3877/cma.j.issn.2095-7157.2026.02.005

论著

基于深度学习、影像组学特征及联合特征的超声内镜模型对胃间质瘤与平滑肌瘤的鉴别价值
赵云云1,2, 杜晨2, 李惠凯2, 庞吉超3, 徐鸿昊3, 宗琦4, 陈倩倩2,(), 令狐恩强2,()
  1. 1100853 北京,解放军总医院解放军医学院
    2100853 北京,解放军总医院第一医学中心消化内科医学部
    3100853 北京,解放军总医院第一医学中心放射诊断科
    4024000 赤峰,赤峰市肿瘤医院
  • 收稿日期:2026-02-11 出版日期:2026-05-15
  • 通信作者: 陈倩倩, 令狐恩强
  • 基金资助:
    国家重点研发计划(2022YFC2503600)

Value of endoscopic ultrasound models based on deep learning, radiomics, and combined features in differentiating gastric stromal tumors from leiomyomas

Yunyun Zhao1,2, Chen Du2, Huikai Li2, Jichao Pang3, Honghao Xu3, Qi Zong4, Qianqian Chen2,(), Enqiang Linghu2,()

  1. 1Chinese PLA General Hospital, Chinese PLA Medical School, Beijing 100853, China
    2Department of Gastroenterology, The First Medical Center, Chinese PLA General Hospital, Beijing 100853, China
    3Department of Radiology, The First Medical Center, Chinese PLA General Hospital, Beijing 100853, China
    4Chifeng Tumor Hospital, Chifeng 024000, China
  • Received:2026-02-11 Published:2026-05-15
  • Corresponding author: Qianqian Chen, Enqiang Linghu
引用本文:

赵云云, 杜晨, 李惠凯, 庞吉超, 徐鸿昊, 宗琦, 陈倩倩, 令狐恩强. 基于深度学习、影像组学特征及联合特征的超声内镜模型对胃间质瘤与平滑肌瘤的鉴别价值[J/OL]. 中华胃肠内镜电子杂志, 2026, 13(02): 101-107.

Yunyun Zhao, Chen Du, Huikai Li, Jichao Pang, Honghao Xu, Qi Zong, Qianqian Chen, Enqiang Linghu. Value of endoscopic ultrasound models based on deep learning, radiomics, and combined features in differentiating gastric stromal tumors from leiomyomas[J/OL]. Chinese Journal of Gastrointestinal Endoscopy(Electronic Edition), 2026, 13(02): 101-107.

目的

探讨基于超声内镜(EUS)深度学习、影像组学及其联合模型在鉴别胃间质瘤(GIST)与平滑肌瘤中的应用价值。

方法

回顾性分析2010年1月至2025年4月解放军总医院第一医学中心895例患者(共4 802张EUS图像)的临床及影像资料,以病变为单位按8∶2比例随机划分为训练集与测试集。分别提取EUS图像的影像组学特征与基于Transformer架构的细粒度深度学习特征,构建单一模态及联合模态的机器学习分类模型(支持向量机、极端梯度提升、随机森林)。通过受试者操作特征(ROC)曲线、DeLong检验、校准曲线及决策曲线分析综合评估模型性能与临床效用。

结果

在测试集中,深度学习模型与联合模型的诊断效能均显著优于传统影像组学模型,其中支持向量机的联合模型效能最佳,曲线下面积(AUC)、准确度、灵敏度、特异度分别为0.852、0.792、0.831、0.707。

结论

基于EUS的深度学习特征是鉴别胃GIST与平滑肌瘤的核心驱动力,其诊断效能显著优于传统影像组学特征。

Objective

To investigate the value of endoscopic ultrasound (EUS)-based deep learning, radiomics, and their combined model in differentiating gastric gastrointestinal stromal tumors (GIST) from leiomyomas.

Methods

Clinical and imaging data from 895 patients (totaling 4, 802 EUS images) at the First Medical Center of the Chinese PLA General Hospital between January 2010 and April 2025 were retrospectively analyzed.Cases were randomly divided into training and test sets at an 8∶2 ratio based on lesions.Radiomic features and fine-grained deep learning features based on the Transformer architecture were extracted from EUS images to construct single-modality and combined-modality machine learning classification models (support vector machine, extreme gradient boosting, random forest).Model performance and clinical utility were comprehensively evaluated using receiver operating characteristic (ROC) curves, the DeLong test, calibration curves, and decision curve analysis.

Results

In the test set, both the deep learning model and the combined model demonstrated significantly better diagnostic performance than the traditional radiomics model. Among these, the combined model using the support vector machine achieved the best performance, with an area under the curve (AUC), accuracy, sensitivity, and specificity of 0.852, 0.792, 0.831, and 0.707, respectively.

Conclusion

EUS-based deep learning features serve as the primary driver for differentiating gastric GIST from leiomyomas, with diagnostic performance significantly superior to that of traditional radiomic features.

表1 训练集和测试集患者及病灶特征[例(%)]
表2 三种机器学习方法在不同模态训练集和测试集的诊断性能
表3 Delong检验比较测试集中各模型ROC曲线下面积

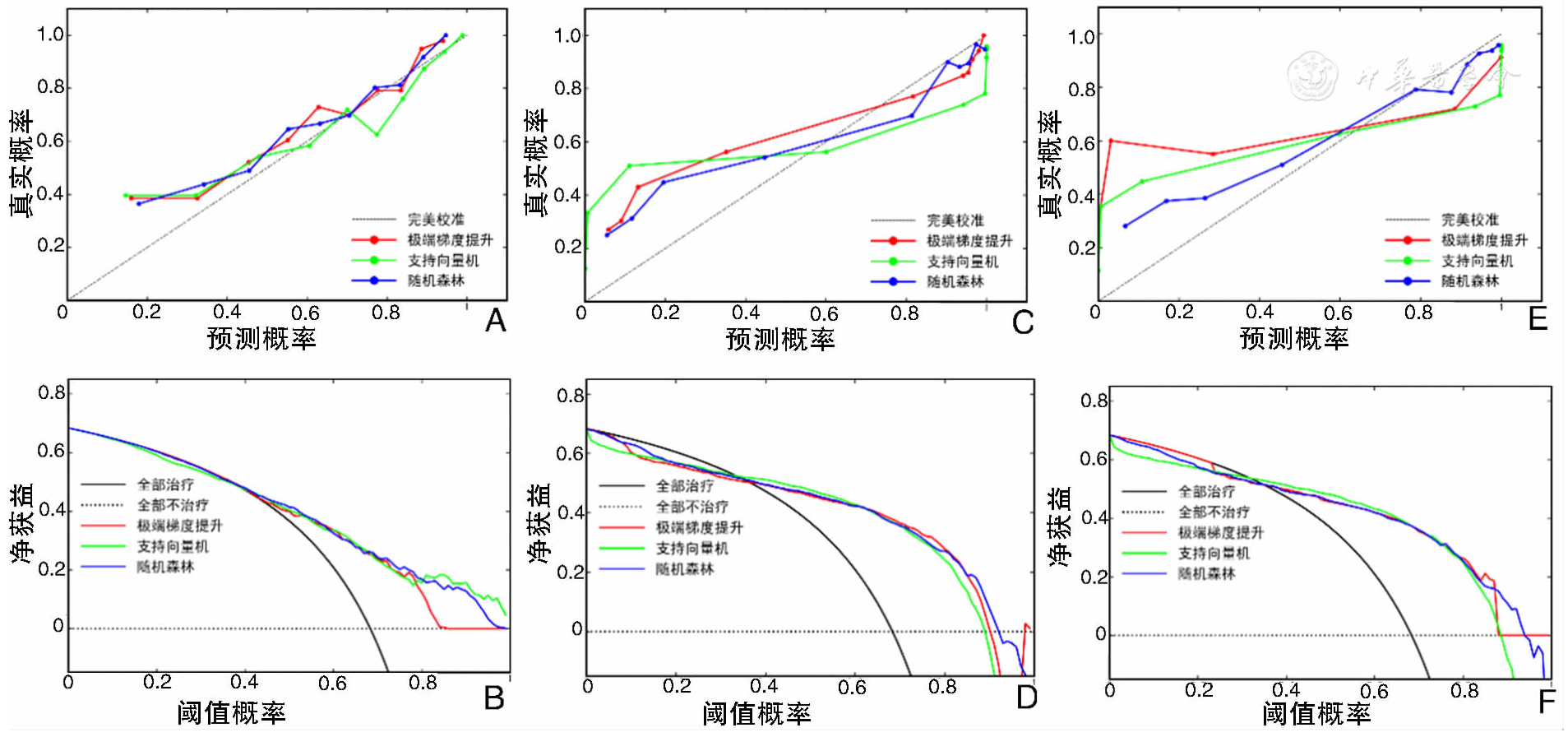

图1 影像组学、深度学习及联合模型在测试集中的校准曲线和决策曲线注:A~B:影像组学模型;C~D:深度学习模型;E~F:联合模型
表4 不同模型测试集的Brier分数

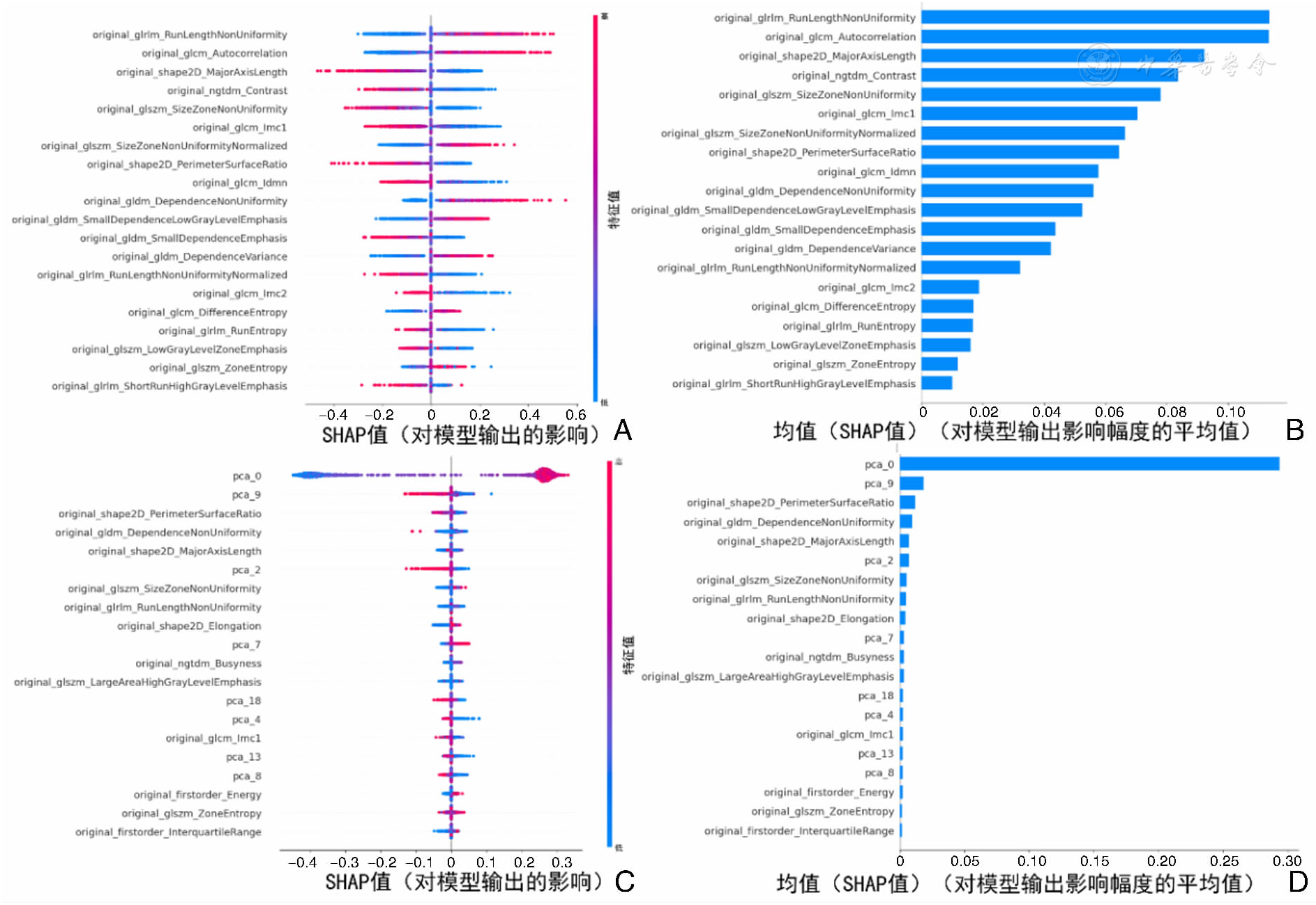

图2 支持向量机的影像组学及联合模型在测试集中前20个特征的SHAP值分布图注:A~B:影像组学模型;C~D:联合模型
[1]
Jacobson BCBhatt AGreer KB,et al.ACG Clinical Guideline: Diagnosis and Management of Gastrointestinal Subepithelial Lesions[J].Am J Gastroenterol2022, 118(1):46-58.
[2]
Deprez PHMoons LMGO′Toole D,et al.Endoscopic management of subepithelial lesions including neuroendocrine neoplasms:European Society of Gastrointestinal Endoscopy (ESGE) Guideline[J].Endoscopy202254(4):412-429.
[3]
中华医学会消化内镜学分会外科学组,中华医学会消化内镜学分会经自然腔道内镜手术学组,中国医师协会内镜医师分会消化内镜专业委员会,等.中国消化道黏膜下肿瘤内镜诊治专家共识(2023版)[J].中华消化内镜杂志202340(4): 253-263.
[4]
Hirai KKuwahara TFurukawa K,et al.Artificial intelligence-based diagnosis of upper gastrointestinal subepithelial lesions on endoscopic ultrasonography images[J]. Gastric Cancer202125(2):382-391.
[5]
Gomes RSAde Oliveira GHPde Moura DTH,et al.Endoscopic ultrasound artificial intelligence-assisted for prediction of gastrointestinal stromal tumors diagnosis:A systematic review and meta-analysis[J].World J Gastrointest Endosc, 202315(8):528-539.
[6]
Oh CKKim TCho YK,et al.Convolutional neural network-based object detection model to identify gastrointestinal stromal tumors in endoscopic ultrasound images[J]. J Gastroenterol Hepatol202136(12):3387-3394.
[7]
王卓然,张贤达,曹羽成,等. 基于超声内镜影像组学和机器学习的胃肠道间质瘤与非胃肠道间质瘤鉴别方法[J]. 海军军医大学学报202445(1): 21-28.
[8]
Lu Y, Wu J, Hu M, et al. Artificial Intelligence in the Prediction of Gastrointestinal Stromal Tumors on Endoscopic Ultrasonography Images: Development, Validation and Comparison with Endosonographers[J]. Gut Liver, 2023, 17(6): 874-883.
[9]
Dong ZZhao XZheng H,et al.Efficacy of real-time artificial intelligence-aid endoscopic ultrasonography diagnostic system in discriminating gastrointestinal stromal tumors and leiomyomas:a multicenter diagnostic study[J].E Clin Med, 202473:102656.
[10]
Liu JHuang JSong Y,et al.Differentiating Gastrointestinal Stromal Tumors From Leiomyomas of Upper Digestive Tract Using Convolutional Neural Network Model by Endoscopic Ultrasonography[J].J Clin Gastroenterol202458(6):574-579.
[11]
Minoda YIhara EFujimori N,et al.Efficacy of ultrasound endoscopy with artificial intelligence for the differential diagnosis of non-gastric gastrointestinal stromal tumors[J].Sci Rep202212(1):16640.
[12]
Japanese Gastric Cancer A.Japanese Classification of Gastric Carcinoma - 2nd English Edition[J].Gastric Cancer19981(1):10-24.
[13]
Zhang XDZhang LGong TT,et al.A combined radiomic model distinguishing GISTs from leiomyomas and schwannomas in the stomach based on endoscopic ultrasonography images[J].J Appl Clin Med Phys202324(7):e14023.
[14]
Cai MSong BDeng Y,et al.Automatically optimized radiomics modeling system for small gastric submucosal tumor (<2 cm) discrimination based on EUS images[J]. Gastrointest Endosc202399(4):537-547.e4.
[15]
Le Berre C, Sandborn WJ, Aridhi S, et al. Application of Artificial Intelligence to Gastroenterology and Hepatology[J]. Gastroenterology, 2020158(1):76-94.e2.
[16]
Yang XWang HDong Q,et al.An artificial intelligence system for distinguishing between gastrointestinal stromal tumors and leiomyomas using endoscopic ultrasonography[J].Endoscopy202254(3):251-261.
[17]
Zhang C, Li S, Huang D, et al. Development and Validation of an AI-Based Multimodal Model for Pathological Staging of Gastric Cancer Using CT and Endoscopic Images[J]. Acad Radiol, 2025, 32(5): 2604-2617.
[18]
Stahlschmidt SRUlfenborg BSynnergren J.Multimodal deep learning for biomedical data fusion: a review[J].Brief Bioinform202223(2):bbab569.
[19]
Kim SMKim EYCho JW,et al.Predictive Factors for Differentiating Gastrointestinal Stromal Tumors from Leiomyomas Based on Endoscopic Ultrasonography Findings in Patients with Gastric Subepithelial Tumors:A Multicenter Retrospective Study[J].Clin Endosc202154(6):872-880.
[20]
Tanaka HKamata KIshihara R,et al.Value of artificial intelligence with novel tumor tracking technology in the diagnosis of gastric submucosal tumors by contrast-enhanced harmonic endoscopic ultrasonography[J].J Gastroenterol Hepatol, 202237(5):841-846.
